V3 Advanced Strapping Machine
Overview
In a nutshell: Top end, advanced, handheld strapping machine
The SM-HTV3 is the top machine in the 'V' range, yet is pleasngly easy to operate. Powered by a 14.4V 4.0A battery, it is a good choice of automated, handheld strapping tool for use in a busy warehouse.

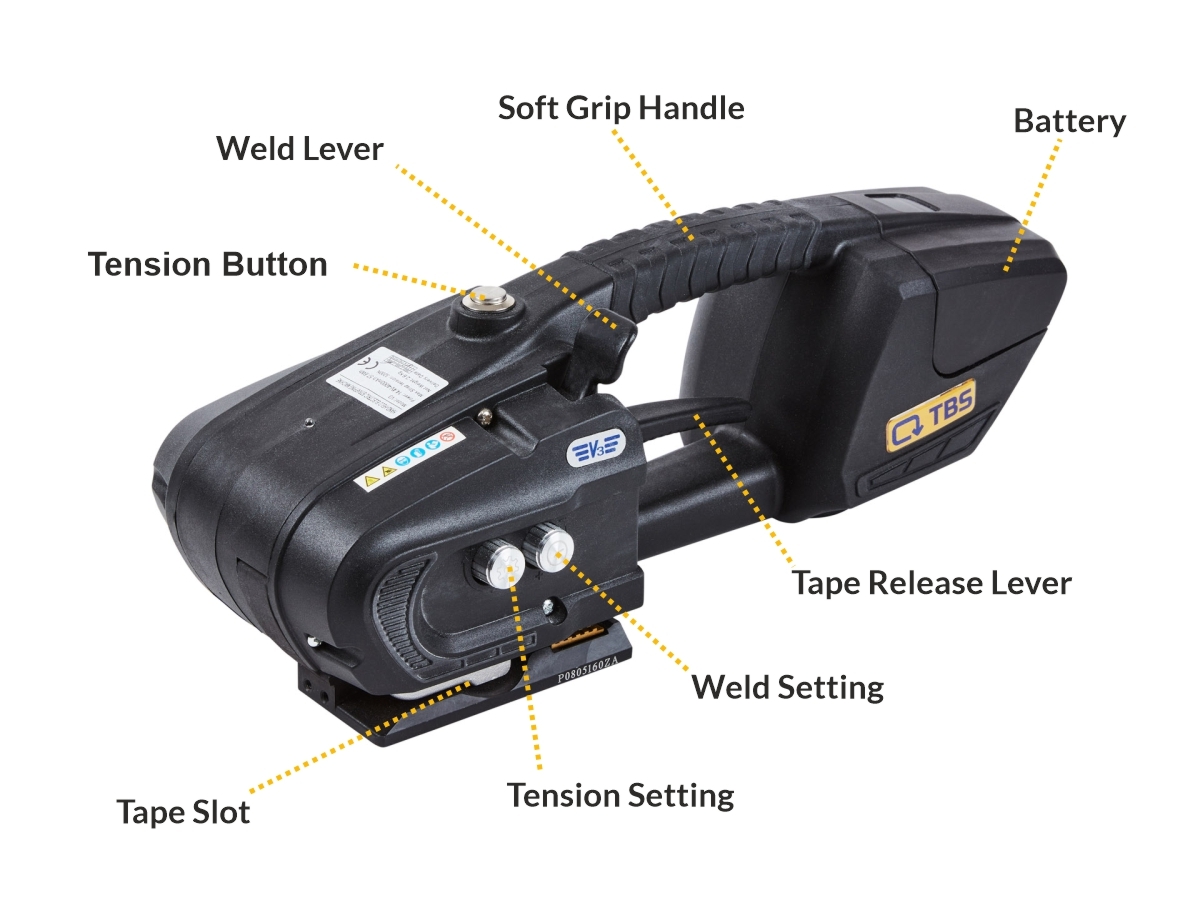

Features:
- Brushless motors for increased efficiency and durability.
- Strap tension and welding time is adjusted via the two knobs on the side. 1
- Press and hold the tension button (top) to adjust the band to the pre-set tension.
- Push down and hold the welding lever to bond the strap using friction stir welding.
- Tape is automatically trimmed. 2
Typical uses include:
- Pallets
- Oversized boxes & packages
In the box:
- The machine itself
- 1 or 2 batteries - your choice
- 1 battery charger
- 1 toolkit
- 1 instruction booklet
1 Your V3 will arrive pre-set and should not normally need any adjustments to the settings.
2 V series machines arrive with the tape cutter configured for PET tape, minor additional configuration is required for automatic cutting of PP tape.
In Use
Specifications

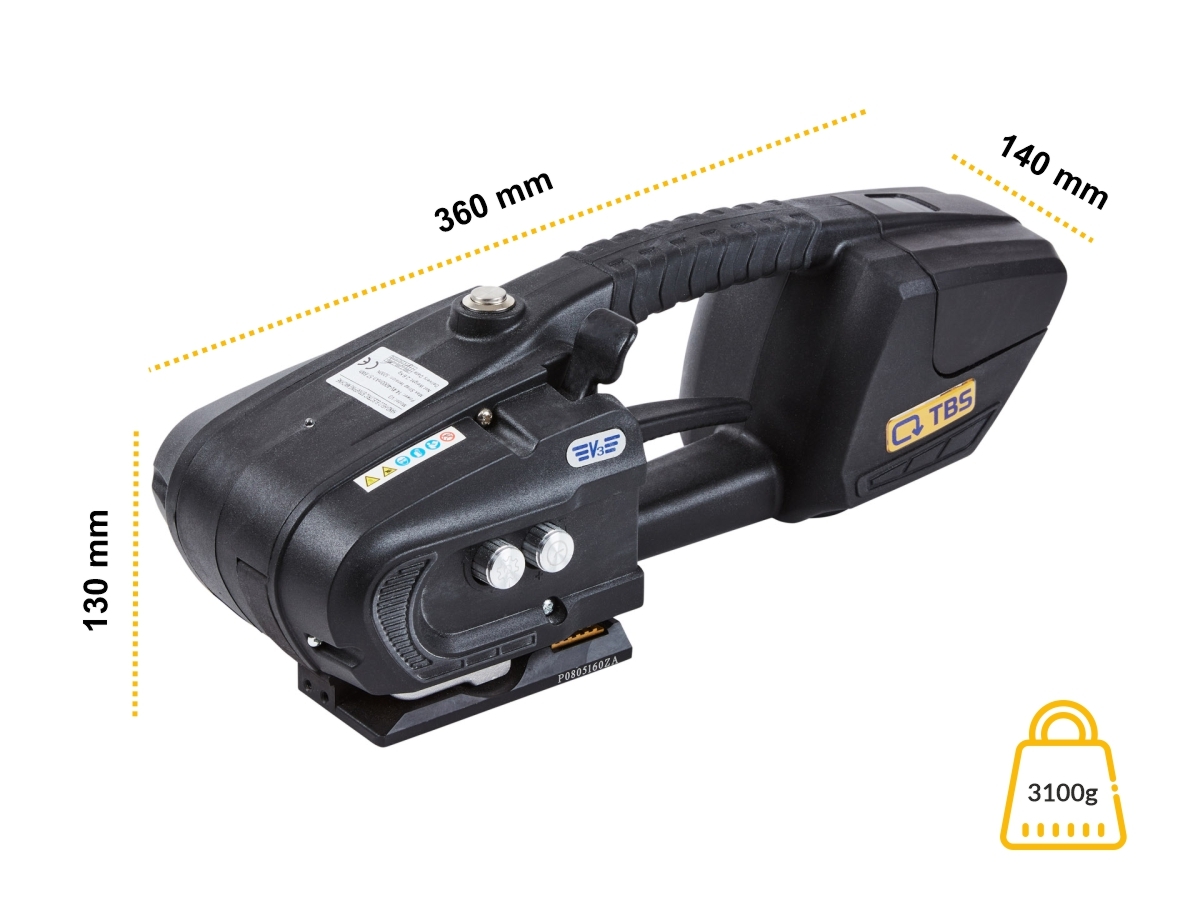

| Machine dimensions | 360 x 140 x 130 mm (l × w × h) |
|---|---|
| Machine weight | 3100 g (with battery) |
| Strap tension | 5 - 3200 N |
| Bonding method | Friction stir weld |
| Operation | Automatic tensioning, binding & trimming |
| Power | 14.4 V, 4.0 Ah Li-ion battery |
| Tape Requirements | |
| Tape material | PP or PET plastic |
| Tape width | 13 - 16 mm |
| Tape thickness | 0.6 - 1.2 mm |
In the same series
V1 Semi-automated Strapping Machine
Entry level, semi-automated handheld strapping machine
V2 Automated Strapping Machine
Mid range, automated, handheld strapping machine
Compatible Tapes
13 mm PET Strapping Tape
Tape Specifications
| Tape material | PET Plastic |
|---|---|
| Roll length | 1000 M |
| Tape thickness | 0.8 mm |
| Tape strength | 200 Kg |
16 mm PET strapping tape
Tape Specifications
| Tape material | PET Plastic |
|---|---|
| Roll length | 1000 M |
| Tape thickness | 1.0 mm |
| Tape strength | 380 Kg |
13 mm PP Strapping Tape
Tape Specifications
| Tape material | PP Plastic |
|---|---|
| Roll length | 1000 M |
| Tape thickness | 0.6 mm |
| Tape strength | 100 Kg |
15 mm PP Strapping Tape
Tape Specifications
| Tape material | PP Plastic |
|---|---|
| Roll length | 1000 M |
| Tape thickness | 1.0 mm |
| Tape strength | 250 Kg |
Accessories

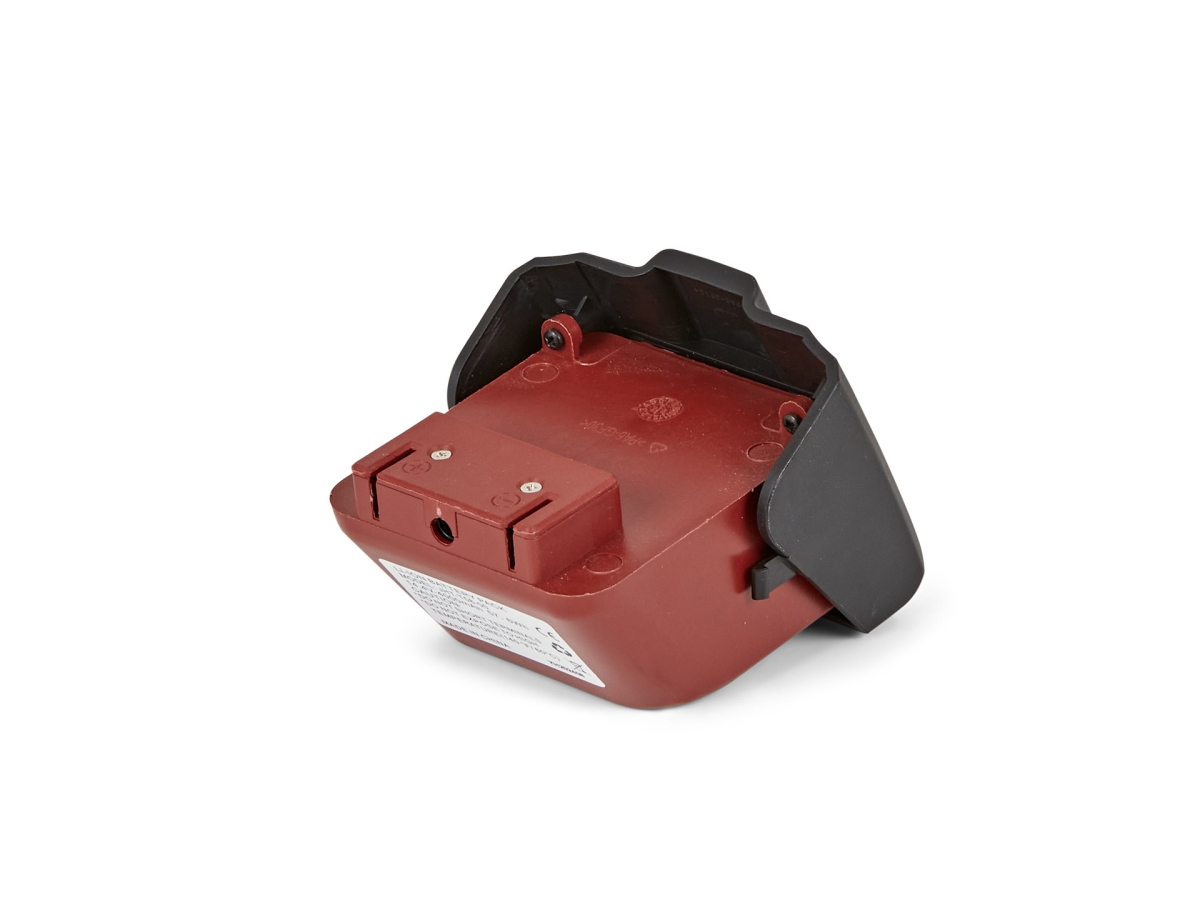

V3 Battery
14.4 V 4.0 Ah Replacement /spare battery for the V3 Cordless Strapping Machine
V3 Battery Charger
16.8 V, 3.0 A charger for the V3 strapping machine battery
200 mm Core Strapping Tape Cart
Wheeled, floor standing dispenser for strapping tapes with 200 mm inner core diameter
