The A
Overview

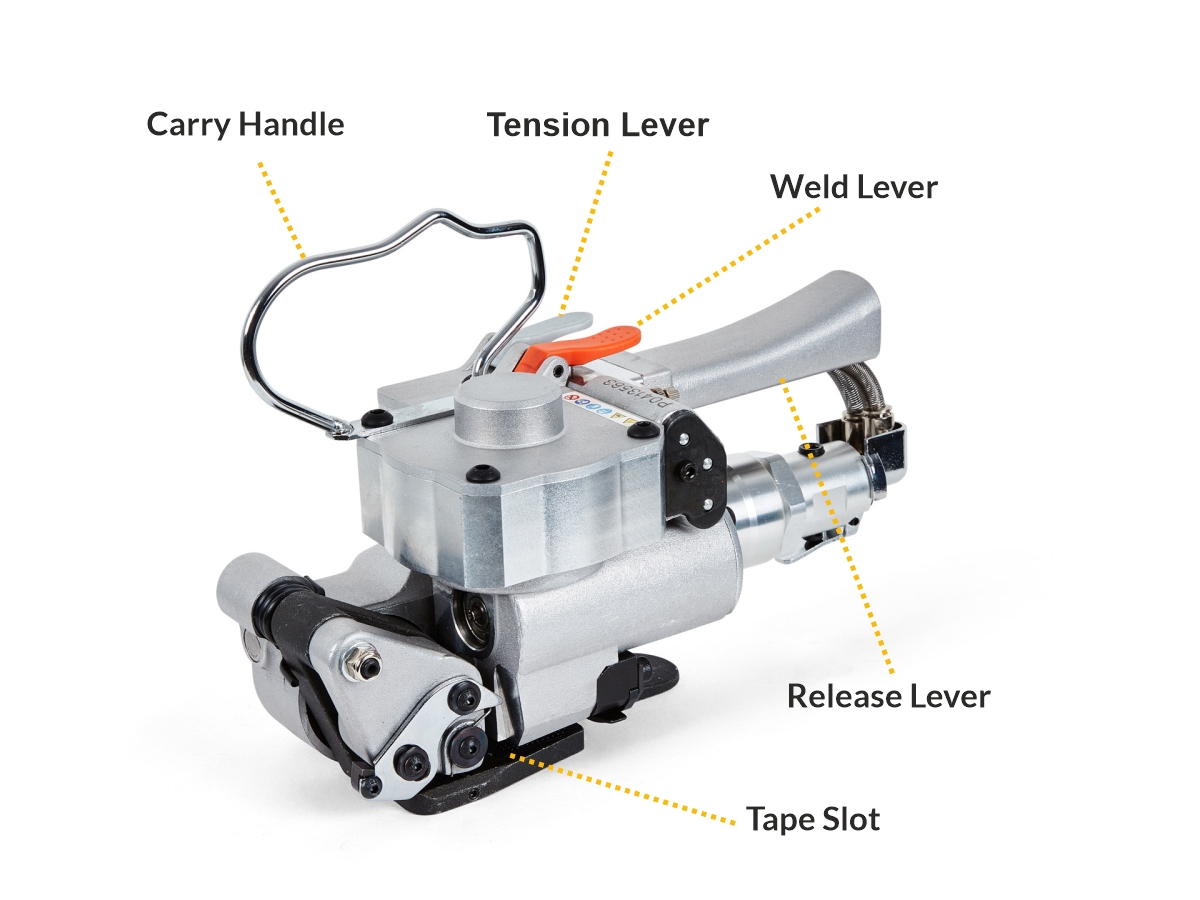

In a nutshell: Pneumatic strapping machine for PP or PET tapes
The A series strapping machines use a 13 - 19 mm or 19 - 25 mm PP or PET tape. Powered by compressed air and capable of producing up to 3500 N of strapping tension which can easily cope with the packaging needs of various heavy items, ensuring the firmness and stability of the packaging.
Features:
- Press the tension button to tighten the strap.
- Push down and hold the welding lever to bond the strap using friction stir welding.
Typical uses include:
- Pallets
- Construction materials
In Use
Specifications
| Machine dimensions | 280 x 160 x 180 mm (l × w × h) |
|---|---|
| Machine weight | 3.8 Kg |
| Strap tension | 350 Kg |
| Bonding method | Friction stir weld |
| Operation | Automatic |
| Power | Compressed air at 0.5-0.8Mpa |
| Tape Requirements | |
| Tape material | PP or PET plastic |
| Tape width | 13 - 19 or 19 - 25 mm |
| Tape thickness | 0.6 - 1.2 mm |
Compatible Tapes
13 mm BPP tape
Tape Specifications
| Tape material | Biodegradable PP Plastic |
|---|---|
| Roll length | 1000 M |
| Tape thickness | 0.6 mm |
| Tape strength | 100 Kg |
Price from: £39.95
14 mm BPP tape
Price Drop
Tape Specifications
| Tape material | Biodegradable PP Plastic |
|---|---|
| Roll length | 1000 M |
| Tape thickness | 0.8 mm |
| Tape strength | 150 Kg |
Price from: £44.95
15 mm BPP tape
Tape Specifications
| Tape material | Biodegradable PP Plastic |
|---|---|
| Roll length | 1000 M |
| Tape thickness | 1.0 mm |
| Tape strength | 250 Kg |
Price from: £59.95
16 mm PET Tape
Tape Specifications
| Tape material | PET Plastic |
|---|---|
| Roll length | 1000 M |
| Tape thickness | 1.0 mm |
| Tape strength | 380 Kg |
Price from: £59.95
19 mm PET Tape
Tape Specifications
| Tape material | PET Plastic |
|---|---|
| Roll length | 750 M |
| Tape thickness | 1.0 mm |
| Tape strength | 400 Kg |
