The DD
Overview
In a nutshell: Heavy duty strapping machine for wider PP or PET plastic tapes
The DD strapping machines use a 16 - 19 mm or 19 - 25 mm tape. Powered by a 14.8 V 4.0 A battery, their variable torque (600 - 5500 N) and adjustable weld times make them a good choice as a hand held, automated strapping machine for heavy duty product strapping.

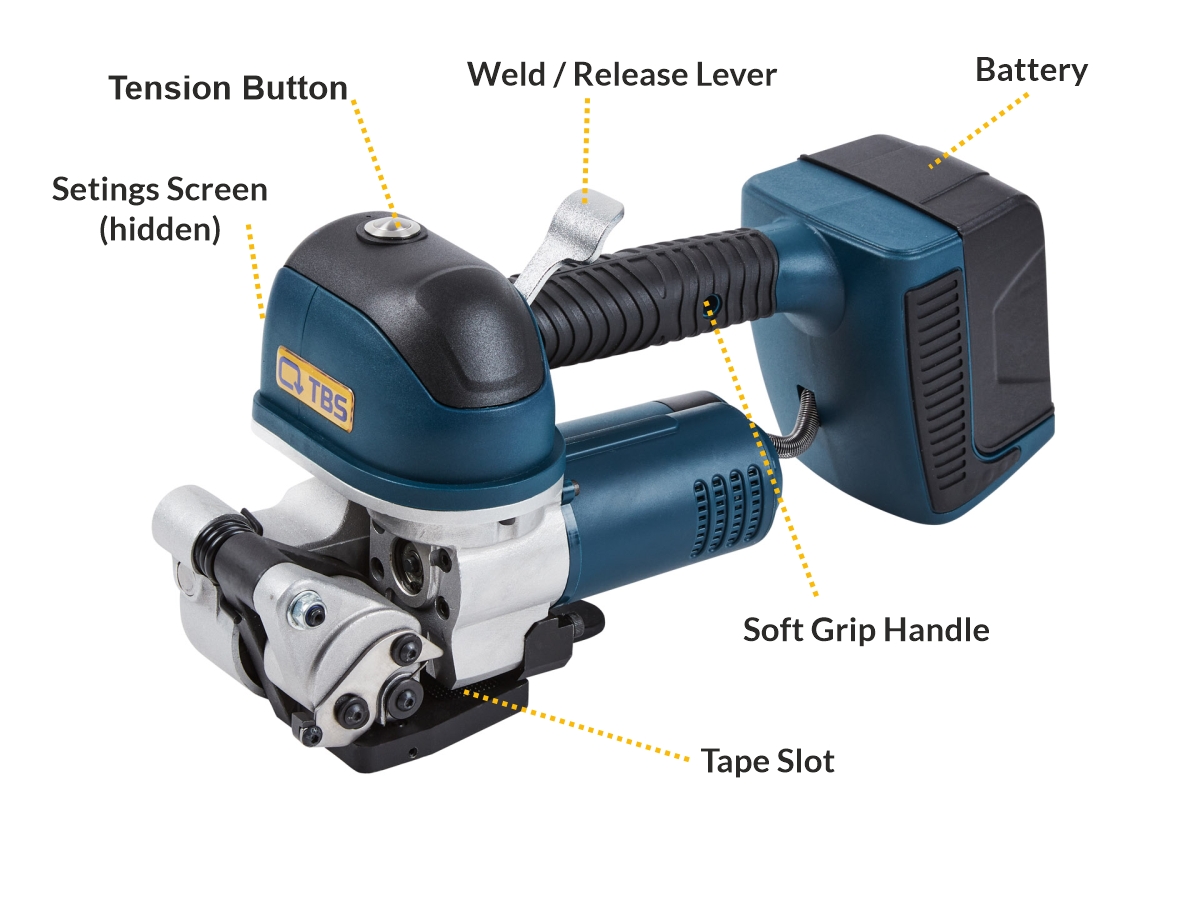

Features:
- Preset the strap tension and weld time via the screen.
- Press the tension button to tighten the strap.
- Push down and hold the welding lever to bond the strap using friction stir welding.
Typical uses include:
- Pallets
- Construction materials
In Use
Specifications
| Machine dimensions | 350 x 90 x 170 mm (l × w × h) |
|---|---|
| Machine weight | 4.4 Kg |
| Strap tension | 600 - 4000 N |
| Bonding method | Friction stir weld |
| Operation | Motorised tensioning, automatic binding & trimming |
| Power | 14.8 V, 4.0 Ah Li-ion battery |
| Tape Requirements | |
| Tape material | PP or PET plastic |
| Tape width | 13 - 19 or 19 - 25 mm |
| Tape thickness | 0.6 - 1.2 mm |
Compatible Tapes
13 mm polypropylene tape
Tape Specifications
| Tape material | Biodegradable PP Plastic |
|---|---|
| Tape width | 13 mm |
| Roll length | 1000 M |
| Tape thickness | 0.6 mm |
Price from: £33.32
14 mm polypropylene tape
Tape Specifications
| Tape material | Biodegradable PP Plastic |
|---|---|
| Tape width | 14 mm |
| Roll length | 1000 M |
| Tape thickness | 0.8 mm |
Price from: £44.95
15 mm polypropylene tape
Tape Specifications
| Tape material | Biodegradable PP Plastic |
|---|---|
| Tape width | 15 mm |
| Roll length | 1000 M |
| Tape thickness | 1.0 mm |
