The Industrial
Key Facts
| Tape material | PE-backed kraft paper or OPP plastic |
|---|---|
| Tape width | 20 or 30 mm |
| Tape thickness | 0.8 to 1.2 mm |
| Minimum item size | 40 x 10 mm |
| Model No | bm-420 |
Price from |
£1495 |
| In stock | Check dropdown below |
Overview
In a nutshell: A tenacious banding machine designed for intensive all day use

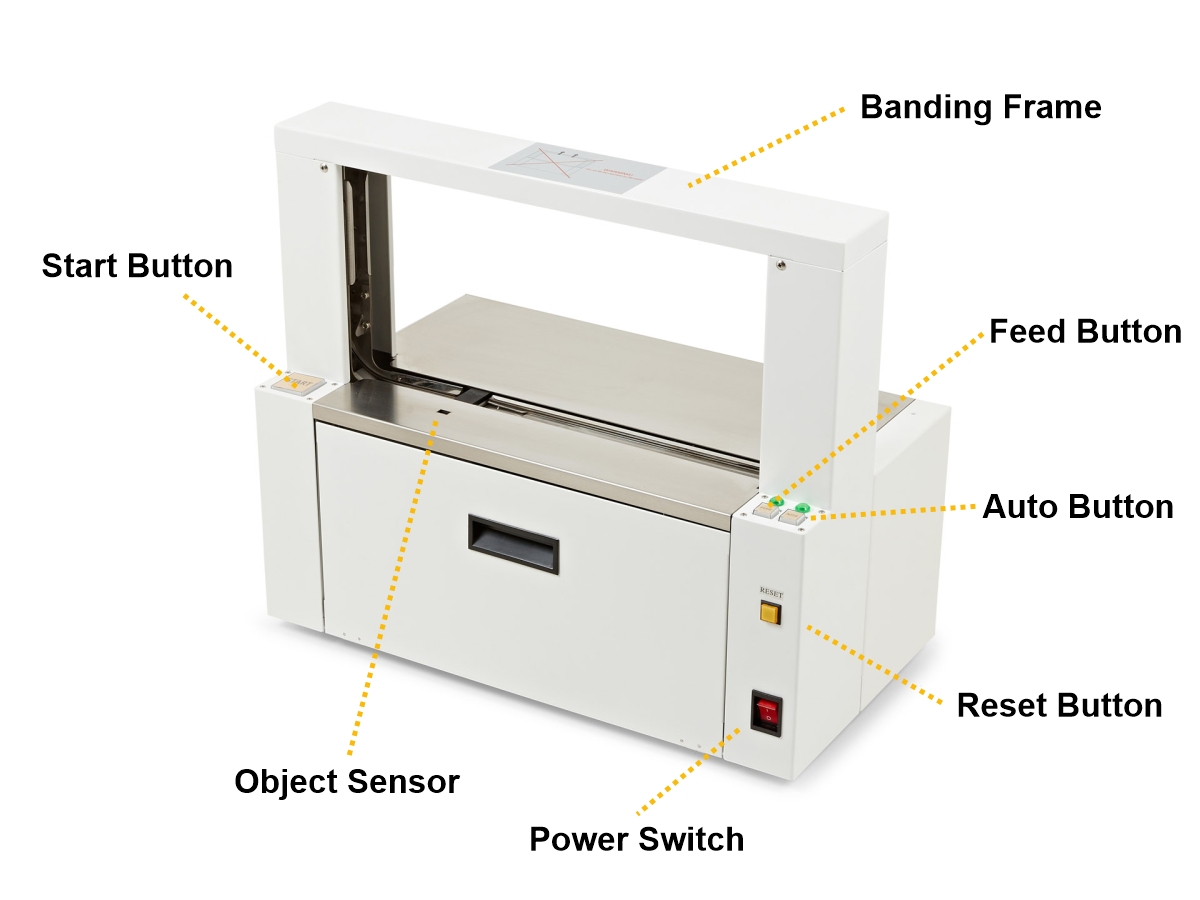

The BM-420 is a mid-sized banding machine for heavy duty industrial applications.
With its banding frame width of 420 mm the machine is suitable for items up to 410 mm wide, and is available in either 20 or 30 mm tape widths.
There are three different banding frame heights:
| Frame internal height | Item maximum height |
| 210 mm | 200 mm |
| 310 mm | 300 mm |
| 410 mm | 400 mm |
The stainless steel work table makes this machine equally at home in a warehouse, factory, or printers. Typical applications include:
- cards, leaflets, menus
- multi-buy bundles, gift wrapping
The machine's versatility allows it to use either paper or plastic banding tape with minimal delay in switching.

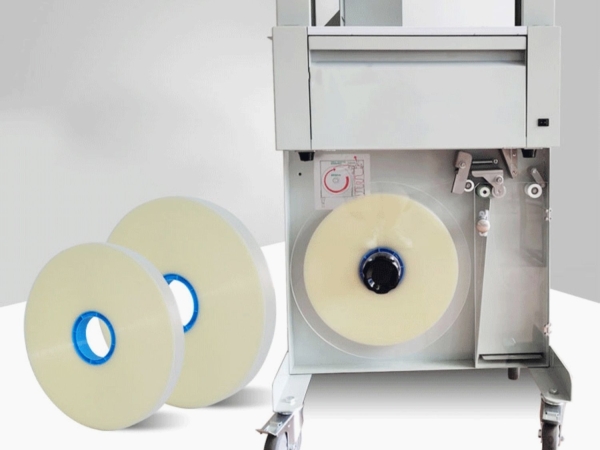

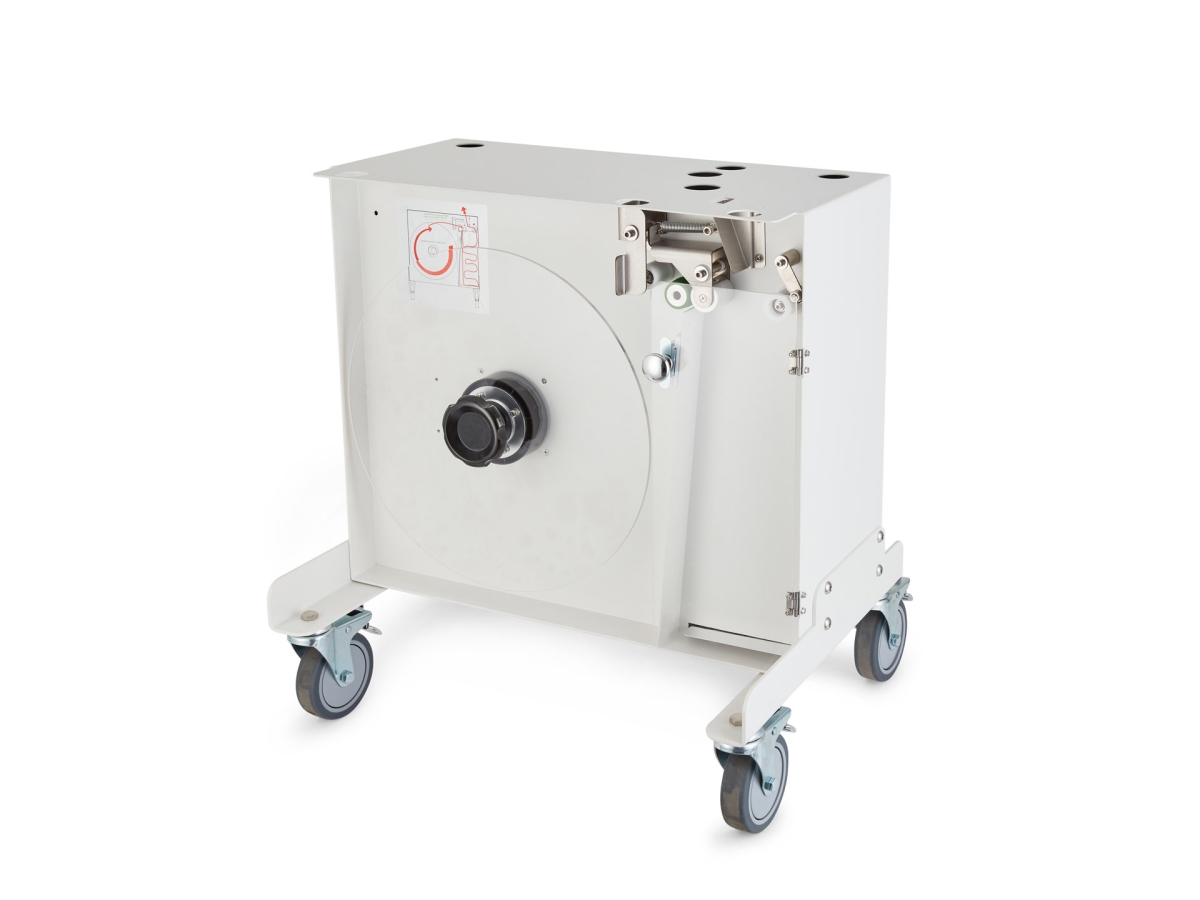

There is an optional stand which holds 810M roll of tape for extended uninterrupted operations.
Due to the number of different configurations available we hold stock of the two most popular models, the 200 & 400 mm high for 30 mm tape, all others are special order items. Please enquire.
Typical Object Size
A3 +
Tape
PE-backed kraft paper or OPP plastic
Cycle Time
2 seconds
Hourly Output
450
In Use
Specifications
| Machine dimensions | 560 * 300 * 490, 590, or 690 mm (w × d × h) |
|---|---|
| Machine weight | 35 kg |
| Strap tension | Up to 60 N |
| Bonding method | Instant hot melt |
| Operation | Auto or manual |
| Electrical reqirements | 220 V 120W |
| Tape material | PE-backed kraft paper or OPP plastic |
| Tape width | 20 or 30 mm |
| Tape thickness | 0.8 to 1.2 mm |
Compatible Tapes
20 mm Tape
Tape Specifications
| Tape material | PE backed kraft paper |
|---|---|
| Tape width | 20 mm |
| Tape thickness | 0.14 mm |
| Roll length | 150 M |
Price from: £3.95
30 mm Tape
Tape Specifications
| Tape material | PE backed kraft paper |
|---|---|
| Tape width | 30 mm |
| Tape thickness | 0.14 mm |
| Roll length | 150 M |
Price from: £4.95
20 mm Plastic Tape
Tape Specifications
| Tape material | OPP Plastic |
|---|---|
| Tape width | 20 mm |
| Tape thickness | 0.12 mm |
| Roll length | 150 M |
Price from: £3.95
30 mm Plastic Tape
Tape Specifications
| Tape material | OPP Plastic |
|---|---|
| Tape width | 30 mm |
| Tape thickness | 0.12 mm |
| Roll length | 150 M |
