210 mm Compact Banding Machine
Overview
In a nutshell: A high speed, desktop, 210 mm banding machine for plastic tape

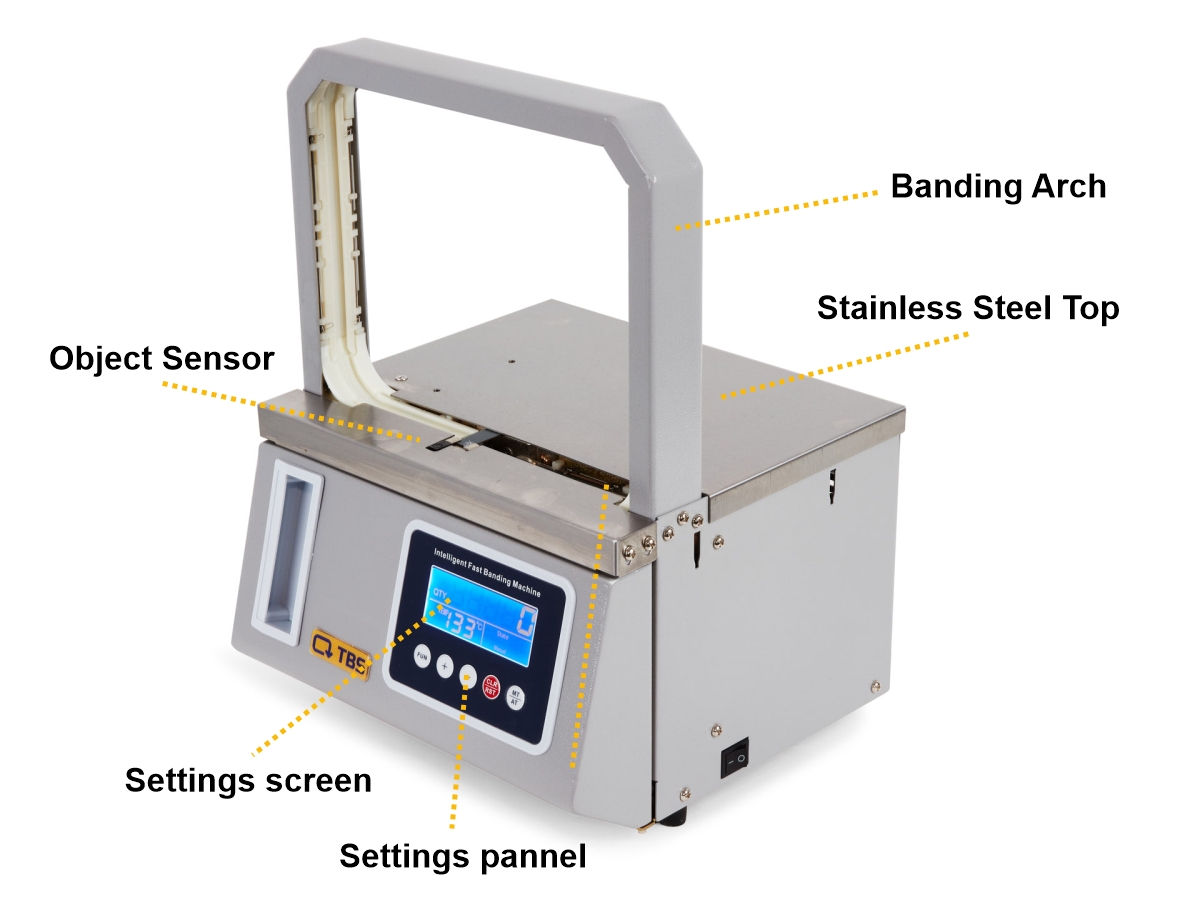

The BM-210 is a compact desktop banding machine that gives fast and efficient banding, in a light commercial environment. The stainless steel work surface makes this machine equally at home in a warehouse, factory, or even a retail environment.
Ideally suited for items that are roughly A5 in size, typical applications include:
- leaflets, brochures, cards
- car parts, cable ties, garden canes
- multi-buy bundles, gift tying
The relatively narrow plastic tape is unobtrusive, especially when the clear version is used, producing a pleasingly tidy finish.
In Use
Specifications
| Max item size | 200 * 160 mm (w * h) |
|---|---|

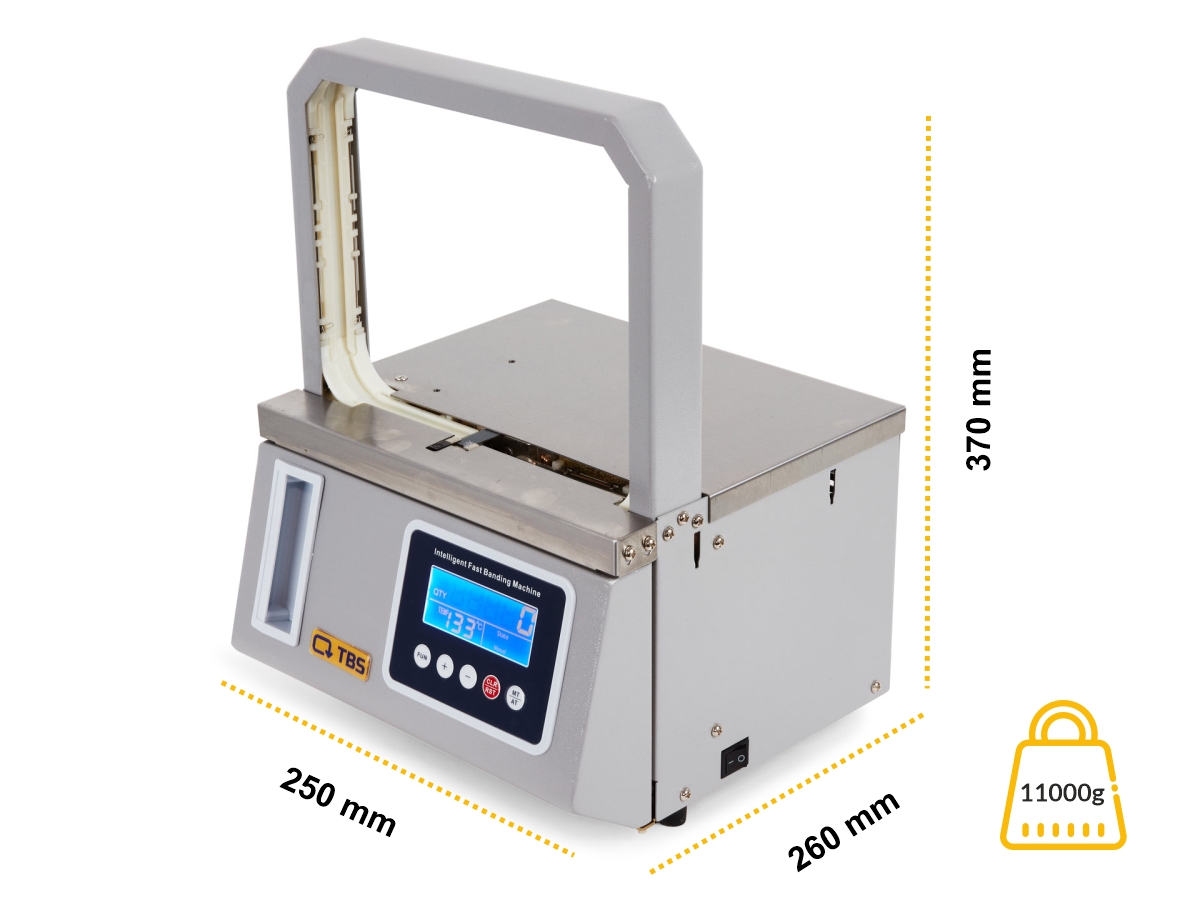

| Machine dimensions | 270 * 250 * 370 mm (w * d * h) |
| Machine weight | 11.5 Kg |
| Strap tension | 1 - 50 N |
| Bonding method | Instant hot melt |
| Operation | Automatic or manual trigger via foot pedal |
| Power | Mains electricity 220 V, 65 W |
| Tape Requirements | |
| Tape material | OPP plastic |
| Tape width | 11.5 mm |
| Tape thickness | 1.0 - 0.12 mm |
| Tape core | 40 mm |
Compatible Tapes

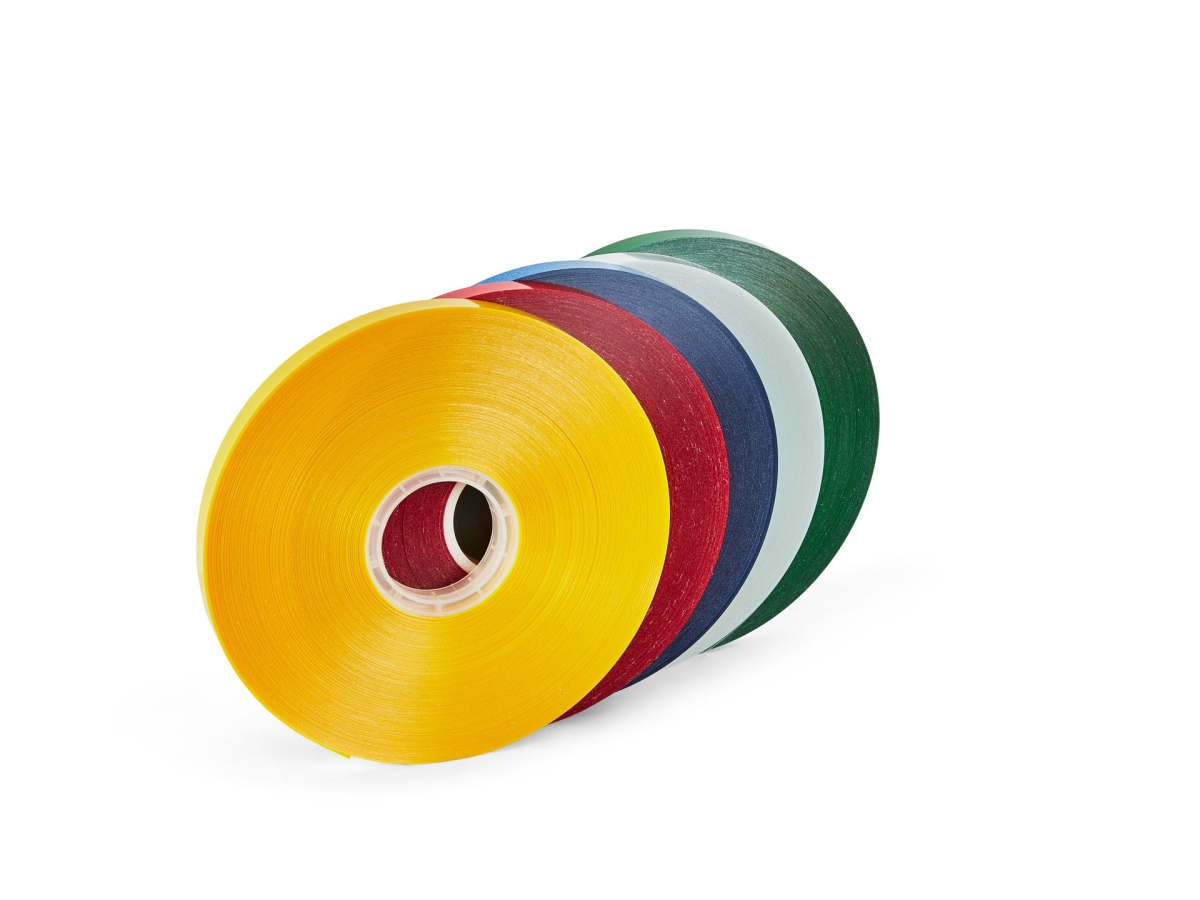

11.5 mm OPP Plastic Banding Tape
Tape Specifications
| Tape material | OPP |
|---|---|
| Roll length | 150 M |
| Roll core diameter | 40 mm |
| Fits | BM-210 |
